How HPLC ChromCap Assemblies Support Clean and Consistent Solvent Flow
April 28, 2026

How HPLC ChromCap Assemblies Support Clean and Consistent Solvent Flow

In any high-performance liquid chromatography setup, the quality of your solvent delivery system directly affects the reliability of your results. One component that often goes unnoticed until something goes wrong is the HPLC ChromCap Assembly. These assemblies are designed to form a secure, leak-free connection between your solvent reservoir and the HPLC system, ensuring that every run starts with clean, consistent fluid delivery. Understanding what makes a good HPLC cap assembly and how it contributes to system performance can help laboratory professionals make better purchasing and maintenance decisions.

What Is an HPLC ChromCap Assembly and Why Does It Matter

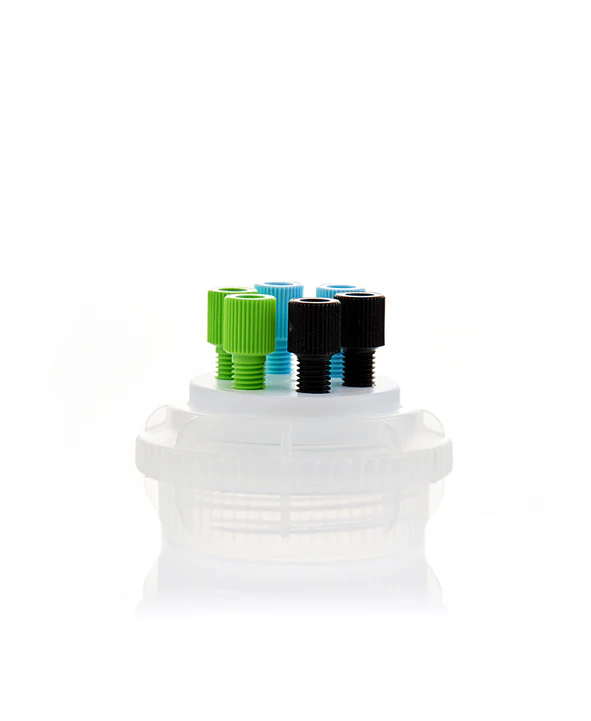

An HPLC ChromCap Assembly is a multi-component cap and tubing system that fits onto solvent reservoir bottles, typically those with GL45 threaded necks. The cap creates an airtight seal on the bottle, while multiple integrated ports allow tubing to pass through for solvent aspiration and venting. The primary purpose of this assembly is to maintain a controlled, contamination-free pathway from the solvent bottle to the HPLC pump inlet.

When a solvent inlet filter and tubing are connected through the cap assembly, the system eliminates the risk of particulate contamination entering the pump. This is especially critical in gradient elution methods, where even minor inconsistencies in solvent composition or flow rate can skew peak resolution and retention times. A well-designed HPLC solvent delivery system is only as reliable as the weakest point in the fluid path, and cap assemblies are that point.

Material Composition: Why PTFE and Class VI Compliance Are Non-Negotiable

The material used in an HPLC ChromCap Assembly plays a decisive role in its chemical resistance and safety classification. The best-performing assemblies, including those based on the ChromCap GL45 design, use Class VI PTFE adapters. PTFE, or polytetrafluoroethylene, is one of the most chemically inert materials available. It withstands aggressive solvents, including acetonitrile, methanol, tetrahydrofuran, and various buffer systems, without swelling, leaching, or degrading over time.

Class VI certification, as defined by USP (United States Pharmacopoeia), ensures the material has been tested for biological reactivity and is safe for use in applications where it may contact biological samples or be used in pharmaceutical environments. For laboratories running pharmaceutical HPLC, bioanalytical testing, or regulated method validation, using assemblies with Class VI-rated components is not just a best practice; it is often a compliance requirement. The use of non-certified materials in these workflows can introduce extractable and leachable contaminants that compromise data integrity.

Port Configuration and Tubing Compatibility Across Common OD Sizes

One of the defining technical features of a high-quality HPLC ChromCap Assembly is its port configuration. A six-port design is widely considered optimal for most standard HPLC setups. These six ports accommodate multiple inlet lines simultaneously, making them suitable for use with multi-solvent systems or when additional lines are needed for sparging or nitrogen blanket applications.

Tubing compatibility is equally important. The ChromCap 100 Assembly is engineered to work with 3.2mm (1/8" OD) tubing as well as 1.6mm (1/16" OD) tubing, which covers the two most common sizes used in standard and micro HPLC applications. Proper tubing fit prevents micro-leaks at the cap interface, which are a common source of air bubble introduction, pressure instability, and baseline noise in chromatographic runs. Whether your lab uses preparative-scale or analytical-scale systems, confirming that your cap assembly accommodates the correct OD tubing is a fundamental step in setup.

The Role of the Vent Hole in Maintaining Stable Solvent Flow

A feature that often distinguishes a purpose-built HPLC ChromCap Assembly from a generic bottle cap is the integrated vent hole. Without proper venting, a sealed solvent bottle creates a vacuum as liquid is drawn out by the pump. This vacuum progressively resists the pump's ability to aspirate solvent, leading to flow rate inconsistencies, potential pump cavitation, and ultimately failed runs.

The vent hole in a properly designed GL45 cap assembly allows controlled air ingress without exposing the solvent to open-air contamination. In most designs, the vent is filtered or positioned to minimise particulate ingress while still balancing internal pressure as solvent is consumed. This simple design element has a direct impact on pump performance, chromatographic reproducibility, and the overall lifespan of the pump inlet system.

Key Differences Between Standard Bottle Caps and Dedicated HPLC Cap Assemblies

Laboratories new to high-performance liquid chromatography sometimes underestimate the functional difference between a standard GL45 cap and a dedicated HPLC ChromCap Assembly. A standard lab cap closes the bottle and nothing more. A dedicated HPLC solvent cap assembly is engineered for dynamic solvent delivery under pressure, with multiple defined ports, chemical-grade tubing fittings, Class VI materials, and integrated venting.

The distinction matters in practice. Laboratories using improvised or mismatched cap solutions frequently report issues including tubing slippage under back-pressure, solvent evaporation through poorly sealed ports, UV-absorbing extractables from non-HPLC-grade materials, and increased system maintenance frequency. Switching to a validated, purpose-built HPLC ChromCap Assembly addresses all of these issues at the source and reduces the time spent troubleshooting system problems that originate in the solvent delivery path.

Proper Use and Maintenance of HPLC ChromCap Assemblies for Longer Service Life

Even the highest quality HPLC cap assembly requires correct installation and regular inspection to perform at its best. The GL45 threading should be tightened to finger-tight and then a quarter turn with a tool over-tightening compresses the PTFE adapter and can crack it, while under-tightening allows air ingress and solvent vapour leaks. Tubing should be inserted to the full depth specified by the port design and secured without bending at sharp angles, which can cause stress fractures over time.

Periodic inspection of the PTFE adapter for discolouration, cracking, or deformation is recommended, particularly when solvents such as concentrated acids, bases, or halogenated compounds are used regularly. Replacing solvent inlet filters on a regular schedule, typically every one to three months depending on solvent cleanliness, prevents particulate buildup that can restrict flow and elevate backpressure. When handled correctly, a quality HPLC ChromCap Assembly provides consistent, reliable performance across hundreds of analytical runs.

Why Foxx Life Sciences Stands Apart in HPLC Consumables

Foxx Life Sciences has built a strong reputation for delivering precision-engineered laboratory consumables that meet the demands of analytical and regulated environments. Their HPLC ChromCap Assemblies are manufactured to strict quality standards, featuring USP Class VI PTFE adapters, multi-port GL45-compatible designs, and broad tubing compatibility. With a focus on material traceability, lot-to-lot consistency, and compliance-ready documentation, Foxx Life Sciences is a trusted supplier for laboratories where performance and accountability cannot be compromised. Their product range supports diverse HPLC workflows from routine quality control to advanced analytical method development.

Frequently Asked Questions

Q1. What does the GL45 designation mean on an HPLC ChromCap Assembly?

GL45 refers to the standardised thread size of the bottle neck 45mm diameter with a specific thread pitch. It is the most common thread format on laboratory solvent bottles. An HPLC ChromCap Assembly with a GL45 fitting will seat securely on these bottles, providing a leak-free seal for solvent delivery without requiring adapters or modification.

Q2. Why is Class VI PTFE preferred over standard PTFE in HPLC cap assemblies?

Standard PTFE is chemically resistant, but Class VI certification adds a biological safety dimension. USP Class VI materials have passed rigorous extraction and implantation tests, confirming they do not leach harmful substances into solvents. For pharmaceutical, bioanalytical, and GMP laboratory environments, Class VI compliance is typically required for any wetted component in the solvent path.

Q3. Can one HPLC ChromCap Assembly handle multiple solvent lines at the same time?

Yes. A six-port HPLC ChromCap Assembly allows multiple tubing lines to run simultaneously from a single bottle. This is useful in setups requiring a primary inlet line, a sparging line for dissolved gas removal, and a separate vent. Each port maintains an independent seal, keeping the overall assembly leak-free under operational backpressure conditions.

Q4. How do I know when to replace an HPLC ChromCap Assembly?

Replace the assembly if you observe visible deformation of the PTFE adapter, hairline cracks in port fittings, persistent solvent odour around the cap, or unexplained baseline noise that does not resolve with column or pump troubleshooting. Routine replacement every six to twelve months is advisable in high-throughput environments even without visible damage, to maintain optimal solvent flow integrity

Q5. Are HPLC ChromCap Assemblies compatible with all HPLC solvents?

PTFE-based HPLC ChromCap Assemblies are compatible with the vast majority of common HPLC solvents, including acetonitrile, methanol, isopropanol, water, phosphate buffers, and dilute acids. For highly concentrated mineral acids or strong oxidising agents, confirm the chemical compatibility of all wetted components before use. Always consult the manufacturer's chemical resistance data for specific solvent systems outside standard reversed-phase or normal-phase applications.
