How 120 mm Caps Help Laboratories Improve Safety in Media and Fluid Handling
When it comes to working safely and efficiently in a laboratory environment, the smallest components often carry the most responsibility. 120 mm caps might seem like a minor part of the workflow, but in reality, they are one of the most critical elements in protecting the integrity of media, reagents, and biological fluids throughout the entire process. Whether you are running buffer preparation, downstream processing, or routine media handling, the right laboratory sealing caps directly affect safety, contamination control, and operational efficiency.
Why Cap Size and Design Matter More Than Most Labs Realize
Most laboratory professionals focus on their primary equipment, bioreactors, filters, pumps, and treat consumables like caps for bioprocess containers as secondary decisions. In practice, a poorly fitting or low-grade cap is one of the leading causes of spills, contamination events, and inconsistent batch results. The 120 mm thread size is commonly used on large-volume carboys and bioprocess vessels where significant quantities of media, buffers, or chemicals are stored and transferred. At this scale, a leak is not just a nuisance; it is a safety hazard and a potential loss of an entire batch.
Leak-proof caps designed specifically for this size offer a reliable, repeatable seal that holds up under transport, storage, and process pressure. The integrity of that seal protects both the product and the person handling it.
Key Features to Look for in 120 mm Caps for Lab Bottles
When selecting 120 mm caps for lab carboys, there are several technical and safety criteria that should drive the decision. Not all caps are made equal, and in regulated environments, material quality and design can directly impact compliance.
Chemical Resistance and Material Compatibility
Chemical-resistant caps made from polypropylene (PP) are widely used in laboratory and bioprocess connections because PP withstands a broad range of solvents, buffers, and biological media without degrading. For applications involving harsher reagents, verifying chemical compatibility data before committing to a cap material is essential.
USP Class VI Compliance and FDA-Grade Construction
Carboy caps are manufactured using polypropylene that meet USP Class VI standards are considered safe for contact with biological materials and are required in GMP-regulated environments. Caps that are also BPA-free and autoclavable add another layer of operational flexibility.
Autoclavability and Sterilization Compatibility
Sterile caps designed for media handling—whether gamma‑sterilized, autoclavable at 15 PSI and 121 °C for 20 minutes, or provided pre‑sterilized—remove the need for internal sterilization processes and help minimize the risk of contamination during sealing.
Adapter Insert Versatility
Some 120 mm cap systems are designed with an open-top platform that accepts multiple interchangeable adapter inserts. This means a single cap platform can support closed-cap configurations, venting, filling and venting closures, hose barb connections, and dip tube assemblies, all using the same base cap. This flexibility significantly reduces SKU complexity in a busy lab.
120 mm Caps in Media and Fluid Handling Workflows
In everyday laboratory practice, leak-proof caps are most commonly used with carboys, that used to store culture media, buffer solutions, water for injection (WFI), and cleaning agents. The risk of leakage or contamination is highest during:
Transfer between vessels using tubing and hose barb fittings
Storage under positive or negative pressure
Autoclave cycles where thermal expansion occurs
Transport within a facility or between sites
A robust laboratory bottle sealing solution using 120 mm caps with silicone gaskets provides a tight, repeatable seal that resists these stresses. For aseptic transfer applications, filling and venting closure caps with pre-mounted platinum-cured silicone tubing allow clean connections to pumps, filters, and dispensing systems without breaking the sterile barrier.
Caps for bioprocess containers used in upstream and downstream processing must also accommodate additional components such as aseptic connectors, vent filters, and dip tubes. A modular 120 mm cap system built on a patented open-top design allows labs to build custom fluid paths using validated components without requiring specialized engineering each time.
How Foxx Life Sciences Addresses These Needs
Foxx Life Sciences is a globally recognized manufacturer of single-use bioprocess consumables, with over 15 years of ISO 13485 certification and a portfolio of more than 10,000 unique product SKUs. Their 120 mm Caps and Adapters, including the patented VersaCap® platform, are engineered specifically for wide-mouth carboys used in pharmaceutical, biotech, and research environments. All caps are constructed from USP Class VI polypropylene, are BPA-free, autoclavable at 15 PSI, 121°C for 20 mins, and available in gamma-sterilized configurations too. The modular adapter insert system allows labs to configure caps for closed, vented, filling and venting, powder transfer, and hose barb applications. Foxx products are manufactured in ISO Class 7 certified cleanrooms, and raw materials are certified USP Class VI and are USFDA-registered, making them suitable for the most demanding regulated workflows.
Explore the full range of 120 mm Caps and Adapters at Foxx Life Sciences India.
Selecting the Right 120 mm Cap for Your Application
Before ordering, it helps to map out the exact use case. Consider the following parameters:
Vessel Type and Neck Thread

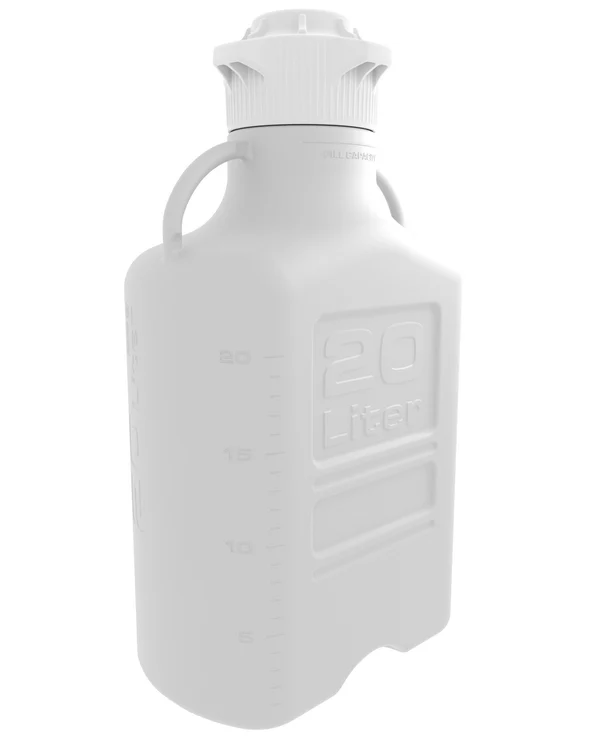

120 mm caps are designed for carboys with a 120 mm neck finish. Confirm this measurement before ordering, as mixing sizes with standard or smaller threads creates leakage risk and fails to deliver the lab bottle sealing solution you need.
Sterility Requirement
For standard buffer storage, a reusable, autoclavable cap is cost-effective. For single-use GMP media preparation, pre-sterilized, gamma-irradiated sterile caps for media handling maintain a cleaner audit trail and eliminate sterilization validation steps from your QA process.
Fluid Transfer Configuration
The fluid transfer requirement determines the adapter insert. Hose barb adapters are needed for pump connections, venting closures are appropriate when filling under pressure, and powder caps with tri-clamp fittings suit dry ingredient transfers. Defining these parameters upfront prevents errors and reduces contamination risk during actual use.
Frequently Asked Questions About 120 mm Caps for Laboratory Use
What is the difference between a standard cap and a 120 mm cap?
A standard lab cap provides basic closure. A 120 mm is engineered with chemical-resistant materials, USP Class VI compliance, autoclavability, and modular adapter compatibility for use in sterile and regulated fluid handling workflows. The performance gap between the two is significant in GMP work environments.
2.Are 120 mm sealing caps compatible with both glass and plastic vessels?
Always verify thread compatibility with the vessel manufacturer before use.
3..Can these caps be autoclaved multiple times without degrading the seal?
Polypropylene 120 mm caps for lab carboys with silicone gaskets can typically be autoclaved at 121°C, 15 PSI for 20 mins. For single-use applications, gamma-sterilized caps eliminate this concern entirely.
4.What makes a cap truly leak-proof in fluid handling applications?
A leak-proof lab cap relies on a combination of proper thread engagement, a correctly sized and seated silicone gasket, and chemical resistance in both the cap body and gasket material. Caps with patented grip designs that allow full engagement without cross-threading further reduce the risk of leaks during routine use.
5.How do I know if a 120 mm cap is appropriate for biological media versus chemical storage?
Review the cap material’s chemical compatibility documentation and verify that the cap is certified to USP Class VI if it will be in contact with biological media. For biological applications, FDA‑grade, BPA‑free construction is the minimum requirement.
