How to Choose the Right Downstream HPLC Caps for Laboratory Applications
May 5, 2026

How to Choose the Right Downstream HPLC Caps for Laboratory Applications

If you run an analytical laboratory, you already know how critical every component of your HPLC system is to data quality and lab safety. Yet one component that often gets overlooked is the downstream HPLC cap. These caps sit at the waste end of your chromatography setup and are responsible for safely collecting and containing solvent waste, controlling toxic vapors, and maintaining a closed-loop system that protects both your personnel and your instrument. Choosing the wrong HPLC cap can result in leaks, vapor exposure, and compliance issues. This guide breaks down exactly what to look for.

What Are Downstream HPLC Caps and Why Do They Matter

In an HPLC workflow, solvents and mobile phases travel through the column and eventually exit as liquid waste. Downstream HPLC caps, also called solvent waste caps or HPLC waste bottle caps, are the assemblies that seal your waste collection containers at the exit end of the system. They typically consist of a cap body, a PTFE manifold, multiple tubing ports, and in most modern designs, an activated carbon exhaust filter. The carbon filter is particularly important: it traps volatile organic compounds (VOCs) such as acetonitrile, methanol, and acetone before they escape into the lab environment. Without proper HPLC waste management through sealed cap assemblies, analysts risk prolonged exposure to hazardous solvent vapors, which is a serious occupational health concern in pharmaceutical, biotech, and analytical chemistry labs.

Key Features to Look for in a Quality HPLC Cap Assembly

Not all HPLC caps are built the same. When evaluating options for your lab, the following features should be non-negotiable.

Closed-Loop Design for Leak Prevention

A closed-loop solvent waste system is the baseline requirement. An open or poorly sealed cap allows solvent vapors to escape freely, creating both a health hazard and a potential fire risk. Look for cap assemblies that use a fully sealed body with chemically resistant O-rings or equivalent gasket materials. The seal should remain intact even under repeated use and solvent exposure. Caps that allow tubes to slide in and out or that loosen after threading are a red flag. Good cap designs use positive-lock or thread-lock mechanisms that stay tight without constant re-tightening.

Activated Carbon Filter for Vapor Control

The activated carbon exhaust filter is what separates a safety-grade HPLC waste cap from a basic bottle stopper. These filters adsorb organic solvent vapors, significantly reducing the concentration of harmful VOCs released into the lab air. When selecting a cap assembly, check the filter thread size. A common standard is ¼-28 thread, and confirm that replacement filters are readily available. Some advanced cap assemblies feature indicator-equipped filters that change color when carbon is saturated, letting you know exactly when a replacement activated carbon filter is needed rather than guessing.

Multi-Port Configuration for HPLC Waste Collection

Modern labs often run multiple HPLC systems simultaneously, or have instruments with several waste outlets. A multi-port HPLC cap allows you to consolidate waste streams into a single container, reducing the number of bottles you manage, lowering disposal costs, and keeping your bench organized. Look for caps that support multiple tubing diameters, typically 1/8" OD tubing (3.2mm), 1/16" OD tubing (1.6mm), and 1/4" OD tubing (6.4mm). Unused ports should come with included plugs so you can seal off any connection points not in use.

Thread Compatibility: GL45 and 38-430 Cap Sizes

Before purchasing, confirm thread compatibility with your waste containers. The most common standards in analytical labs are GL45 and 38-430 cap sizes. GL45 is widely used on glass media bottles, while 38-430 fits a range of plastic bottles. Choosing the wrong thread size leads to leaks or cross-threading that can damage both the cap and bottle, so always verify your container specifications first.

Material Chemical Resistance

HPLC solvents such as methanol, acetonitrile, THF, and chloroform are aggressive chemicals. Chemical-resistant HPLC caps should be manufactured from materials like HDPE, PTFE, or polypropylene that can withstand prolonged contact with these solvents without degrading, cracking, or leaching contaminants. USP Class VI-rated materials are preferred, especially in pharmaceutical and regulated analytical environments, as they meet biocompatibility and extractable/leachable standards.

HPLC Waste Bottle Considerations: Bottles and Carboys

The cap is only part of the equation. Your HPLC waste bottle or HPLC waste carboy must be compatible with your cap assembly and appropriate for the volume of waste your system generates. HDPE safety vent bottles available in 4L, 10L, and larger carboy configurations are a popular choice because HDPE resists most organic solvents and is cost-effective for single or multi-system waste collection. For labs with multiple instruments or high-throughput workflows, heavy-duty HPLC carboys paired with compatible cap assemblies are practical because they reduce the frequency of waste disposal and container changeover. Always ensure the bottle or carboy neck finish matches your selected cap's thread specification, and that the container is rated for the solvents it will hold.

Replacement Fittings, Caps, and Maintenance

One area labs often overlook is the ongoing maintenance of their HPLC waste management system. Tubing connections wear out, fittings can crack or strip with repeated use, and carbon filters need regular replacement. When selecting a cap brand or system, check whether replacement fittings, replacement cap kits, and replacement filters are sold separately and are easy to source. A cap system that requires you to replace the entire assembly when one component fails is expensive and wasteful. Quality manufacturers offer modular parts 1/8" and 1/4" hose barb fittings, 1/8" MNPT plugs, and compatible exhaust filters so you can keep your existing infrastructure running without full replacement costs.

Why Labs Choose Foxx Life Sciences for HPLC Caps

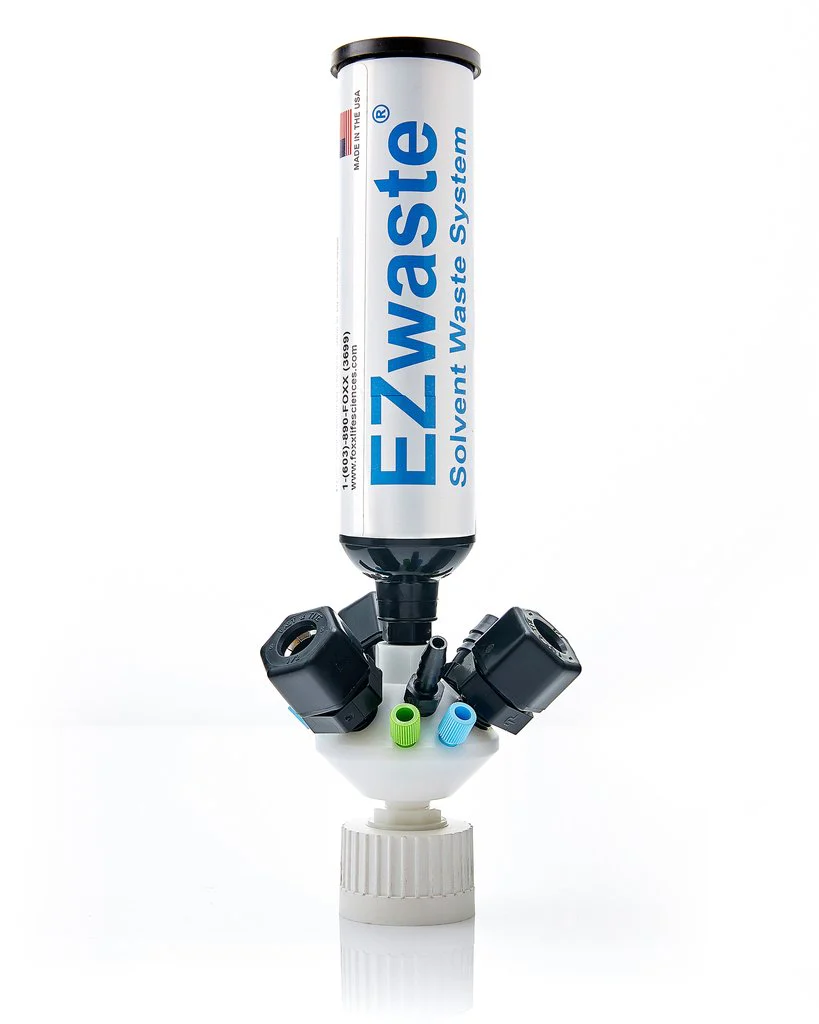

Foxx Life Sciences offers a comprehensive range of downstream HPLC caps designed for real lab conditions. Their EZwaste® VersaCap® assemblies support GL45 and 38-430 thread sizes, multi-port configurations, and activated carbon vapor filtration all built with USP Class VI materials from ISO 13485-certified manufacturing. What makes them particularly practical is the fully modular system: replacement filters, fittings, and cap kits are readily available, so you're never forced to buy a new assembly when a single component wears out. For labs that prioritize safety, compliance, and low total cost of ownership, their HPLC downstream cap range is worth evaluating.

Compliance and Lab Safety Standards

In regulated industries pharma, biotech, clinical testing your HPLC solvent waste system is not just about convenience. It is part of your laboratory safety compliance framework. Many environmental health and safety (EHS) guidelines require closed-container waste systems with vapor control. Choosing HPLC caps with carbon exhaust filters and closed-loop bottle assemblies helps you meet these requirements and demonstrates due diligence in protecting lab personnel from chronic solvent vapor exposure. Document your cap specifications as part of your standard operating procedures (SOPs) and replace filters on a scheduled basis, not just when someone notices a solvent smell.

Quick Selection Checklist Before You Buy HPLC Caps

  • Thread size: GL45 or 38-430 — match your bottle

  • Port count and tubing OD: 1/16", 1/8", 1/4" OD — match your instrument outlets

  • Closed-loop sealed design with O-ring or equivalent gasket

  • Activated carbon exhaust filter with available replacements

  • USP Class VI or equivalent material rating for chemical resistance

  • Replacement parts availability: fittings, filter kits, cap assemblies

  • Bottle or carboy volume appropriate for your waste generation rate

Frequently Asked Questions About HPLC Caps

Q1. What is the difference between upstream and downstream HPLC caps?

Upstream HPLC caps are used on solvent reservoir bottles the mobile phase side of the instrument. Downstream HPLC caps are used on waste collection bottles at the outlet end, focusing on safe waste containment and vapor control rather than delivering clean solvent

Q2. How often should I replace the activated carbon filter in my HPLC waste cap?

Replacement frequency depends on solvent volume and type. As a general rule, replace the carbon filter every 1–3 months or when you notice solvent odor escaping the system. Caps with indicator filters change color when the carbon is saturated, making timing more precise.

Q3. Can I use one HPLC waste cap for multiple instruments?

Yes, provided the cap has enough ports. Multi-port HPLC cap assemblies with multiple tubing connections allow waste from several HPLC channels or instruments to feed into one bottle or carboy, simplifying waste management in high-throughput lab environments.

Q4. Are GL45 and 38-430 HPLC caps interchangeable?

No. GL45 and 38-430 are different thread standards and are not interchangeable. GL45 has a 45mm diameter thread, commonly used on glass media bottles. The 38-430 thread is standard on many plastic lab bottles. Always verify which standard your waste container uses before ordering.

Q5. What materials should HPLC waste caps be made of for use with organic solvents?

HPLC caps should be made of chemically resistant materials such as HDPE, PTFE, or polypropylene. PTFE manifolds with O-ring seals offer the best compatibility across a wide range of organic solvents, including acetonitrile, methanol, THF, and chlorinated solvents.
