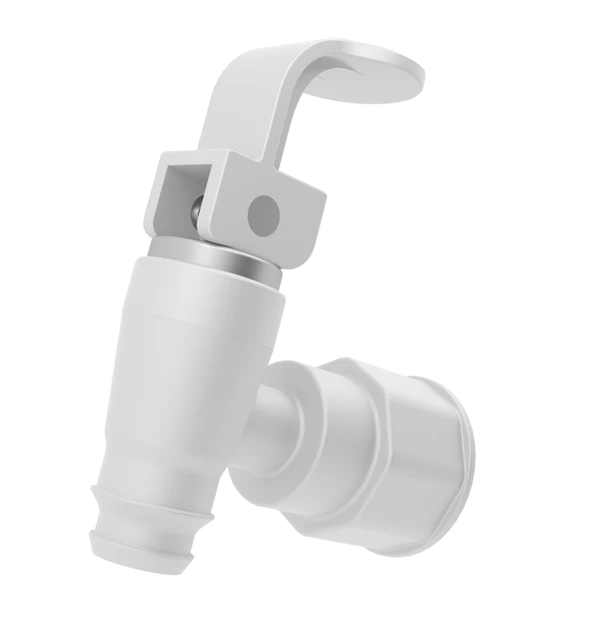

How to Select Spigot Fittings for Carboy Fluid Transfer
August 11, 2026

How to Select Spigot Fittings for Carboy Fluid Transfer

Anyone who works with laboratory carboys knows that moving liquid out of a container safely and efficiently isn't always straightforward. Spigot Fittings solve this problem by giving labs a controlled, low-mess way to drain, dispense, or connect fluids without lifting or tipping heavy containers. Whether you're transferring buffer solutions, waste, or process media, choosing the right fitting affects flow rate, chemical compatibility, and how well it integrates with the rest of your fluid handling setup.

What Are Spigot Fittings, and Why Labs Use Them

A spigot fitting is a valve-style connector that threads onto a carboy or bottle opening and allows controlled fluid release through a hose barb or connector outlet. Instead of pouring directly from a heavy carboy, lab staff can open a lever or valve and let the liquid flow through attached tubing into another vessel, drain line, or piece of equipment. This reduces spills, protects staff from splash exposure, and keeps fluid transfer consistent across batches. In labs handling reagents, buffers, or waste, spigot fittings have become a standard accessory wherever repeated draining or dispensing is part of the daily workflow.

Key Factors to Consider When Selecting Spigot Fittings

Not every spigot fitting works with every carboy, so a few details matter before ordering. Thread size has to match your container's neck opening, and most laboratory-grade Spigot fittings are built around a common thread standard so they fit a wide range of carboys and bottles already in use. Hose barb size is the next consideration, since it determines what tubing diameter connects to the fitting; common options include 1/4", 3/8", 1/2", and 3/4" barbs, so the choice should match the tubing already installed on pumps or waste lines. For labs running sanitary or aseptic processes, connector-style fittings with sanitary flanges are available instead of a plain barb, which matters for cleanroom or bioprocess applications. Flow control is worth checking too: some fittings use a simple on/off lever, while others offer two-speed control for slow dispensing versus fast draining.

Material and Compliance: Why It Matters

The material a spigot fitting is made from determines how well it holds up under repeated use, chemical exposure, and sterilization. Autoclavable polypropylene is the standard choice for laboratory spigot fittings because it withstands high-temperature sterilization cycles without warping or degrading and resists a broad range of solvents and reagents commonly used in laboratories. USP Class VI certification is another detail worth checking, as it confirms that the plastic has been tested for biological reactivity and is considered safe for use in pharmaceutical, biotechnology, and cell culture environments. Before finalizing a purchase, it is helpful to review a chemical compatibility chart for the specific fluids your laboratory handles, as even polypropylene has limitations when exposed to certain aggressive solvents.

Common Applications of Spigot Fittings

Why Foxxlifesciences

Foxxlifesciences supplies laboratory-grade Spigot fittings in multiple hose barb sizes, built from autoclavable, Class VI polypropylene for reliable performance across drainage, pump connection, filling bell, and automated equipment applications.

Frequently Asked Questions

What thread size do most laboratory spigot fittings use?

Most laboratory Spigot Fittings are built around a common thread standard designed to fit standard carboys, though it's worth confirming compatibility with your specific container before ordering.

Can spigot fittings be autoclaved?

Yes, spigot fittings made from autoclavable polypropylene can withstand standard sterilization cycles without warping, making them suitable for repeated use in regulated or sterile laboratory environments.

What hose barb size should I choose for pump connections?

The barb size should match your existing pump tubing diameter; common options include 1/4", 3/8", 1/2", and 3/4", so check your tubing spec before selecting a fitting.

Are spigot fittings suitable for bioprocess or cleanroom use?

Class VI polypropylene spigot fittings, including sanitary connector variants, are commonly used in bioprocess and cleanroom settings where biological safety and material compliance are required.

How do I know if a spigot fitting is chemically compatible with my fluid?

Check a chemical compatibility chart for polypropylene against the specific reagent or solvent you're using, since exposure time and concentration can affect long-term fitting performance.
