How Membrane Disc Filters Reduce Downtime and Improve Efficiency in the Laboratory
May 18, 2026

How Membrane Disc Filters Reduce Downtime and Improve Efficiency in the Laboratory

If you work in a research lab, pharmaceutical unit, or biotech facility, you already know that filtration is not optional it is a core part of almost every workflow. The wrong filter choice leads to clogged systems, repeated runs, contaminated samples, and wasted hours. That is where Membrane Disc Filters make a real difference. These small, flat, circular filters do a lot of heavy lifting when it comes to maintaining sample purity, protecting equipment, and keeping your lab running without interruption.

What Is a Membrane Disc Filter?

A membrane disc filter is a thin, porous, flat disc used in laboratory and industrial filtration to physically separate particles, microorganisms, or contaminants from liquids and gases. The disc is placed inside a filter holder or housing, and fluid passes through under vacuum or positive pressure. Particles larger than the pore size of the membrane are retained on the surface a process called surface capture filtration.

These filters are available in standard diameters 13mm, 25mm, 47mm, 90mm, 142 mm and 293 mm and in two key pore sizes: 0.2µm for sterilization and complete bacterial retention, and 0.45µm for particulate removal and clarification. The choice between these two depends on the specific filtration goal, sample type, and regulatory requirement of your application.

How Membrane Disc Filters Work

The working principle behind how membrane disc filters work is straightforward: fluid is pushed or pulled through a microporous membrane material. The membrane acts as a precise physical barrier. Unlike depth filters, which trap contaminants throughout the thickness of the filter medium, membrane disc filters work primarily at the surface. This makes them more predictable, easier to validate, and suitable for applications where complete particle retention is critical.

The key performance variables are pore size, membrane material, flow rate, and chemical compatibility. Getting these right means fewer filter changes, less downtime, and consistent results. Getting them wrong means premature clogging, sample loss, or chemical degradation of the membrane itself all of which cost time and money.

Membrane Disc Filter Uses Across Industries

The range of membrane disc filter uses is broad, which is part of why they have become such a standard item in laboratory settings globally. In pharmaceutical manufacturing and quality control, they are used for sterile filtration of buffers, media, and APIs. In analytical chemistry labs, they are used to clarify samples before HPLC analysis, removing particulates that would otherwise damage expensive columns or produce inaccurate readings.

In microbiology, 0.2µm membrane disc filters are used for sterilization by filtration a method used when heat sterilization would degrade the substance being filtered. For environmental testing, membrane discs are used to capture microorganisms from water samples before colony counting. In bioprocess and life sciences research, they filter DMSO, alcohols, solvents, and aggressive chemical solutions that would break down lesser filter materials.

The versatility of membrane disc filters also means they are used in pre-filtration setups, where a glass fiber or coarser membrane handles the bulk of particulate load before a finer 0.2µm or 0.45µm disc handles the final polishing step. This combination significantly extends filter life and reduces the frequency of filter replacement, directly cutting downtime.

Key Differences Between Membrane Materials — Why It Matters

Not all membrane disc filter materials behave the same way, and selecting the right one is what separates a smooth filtration run from a frustrating one.

Nylon membrane disc filters offer excellent chemical resistance and are well-suited for filtering aggressive solutions such as alcohols, DMSO, and other polar solvents. They are hydrophilic, meaning they wet out easily with aqueous solutions and do not require pre-wetting. This makes them a popular choice in pharmaceutical labs handling formulation work.

Hydrophobic PTFE membrane disc filters, bonded to a polypropylene support, are specifically designed for the filtration of solvents, acids, and highly aggressive chemicals where even nylon would not hold up. Their extreme chemical compatibility makes them the material of choice when chemical inertness is non-negotiable. They are also used in venting and gas filtration applications because of their hydrophobic nature they allow gas through while blocking liquid ingress.

PES (Polyethersulfone) membrane disc filters are low-protein-binding and hydrophilic, providing high flow rates and high throughput for aqueous applications. They are widely used in microbiological and life science applications involving media, buffers, and biological filtrates. PES is also autoclavable and gamma-stable, which matters in regulated environments.

Glass fiber membrane disc filters, manufactured from borosilicate glass without binders, are used as pre-filters for heavily contaminated or particulate-rich solutions. Their high solids-holding capacity and wet strength make them ideal for protecting downstream membrane filters, extending the service life of the entire filtration setup.

All of these materials, when sourced from a quality-compliant manufacturer, should meet USP Class VI Standards and FDA compliance requirements especially important for pharmaceutical and clinical laboratory use.

Why the Best Membrane Disc Filter for Laboratories Must Be USP Class VI Compliant

When labs talk about the best membrane disc filter for laboratories, compliance is not a secondary concern it is the baseline requirement. USP Class VI is the most stringent biocompatibility standard for plastics and polymers, requiring that materials pass a series of systemic injection, intracutaneous, and implantation tests. For filtration products that come into contact with pharmaceutical solutions, buffers, or biological samples, this certification is essential.

Beyond compliance, the practical factors that define quality are consistent pore size distribution, low extractables, high bubble point, chemical resistance, and integrity testability. A membrane disc filter that fails any of these in practice increases the risk of product contamination, regulatory audit failure, and wasted batches outcomes no lab can afford.

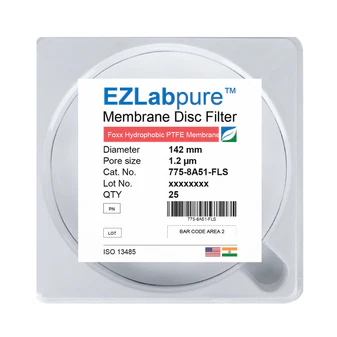

About the EZLabPure™ Membrane Disc Filter Range

For labs in India seeking reliable, compliance-grade filtration consumables, the EZLabPure™ Membrane Disc Filter range offers a well-engineered solution across multiple membrane materials including nylon, hydrophobic PTFE, PES, and glass fiber in standard sizes and pore ratings. These filters comply with USP Class VI Standards, come in both sterile and non-sterile options, and are designed for consistent surface-capture performance across demanding laboratory applications. Whether you are filtering aggressive solvents, sterilizing biological media, or clarifying samples for analytical work, this range provides a matched option for your specific workflow.

Frequently Asked Questions (FAQs)

Q1. What is a membrane disc filter used for in a laboratory?

A membrane disc filter is used to remove particles, bacteria, and microorganisms from liquid or gas samples through surface-capture filtration. Common applications include sterilizing buffers and media, clarifying samples before HPLC analysis, environmental water testing, and filtering solvents in pharmaceutical and research settings.

Q2. What is the difference between 0.2µm and 0.45µm membrane disc filters?

A 0.2µm filter provides complete bacterial retention and is used for sterilization-grade filtration. A 0.45µm filter is used for general particulate removal and clarification. Your choice depends on whether you need sterility assurance or simply want to remove visible particles and debris from your sample.

Q3. Which membrane material should I choose for filtering aggressive chemicals like DMSO or acids?

For alcohols and DMSO, nylon membrane disc filters are a reliable choice due to their strong chemical resistance. For concentrated acids and aggressive solvents, hydrophobic PTFE membrane disc filters bonded to polypropylene support offer superior chemical compatibility and are specifically designed for these applications.

Q4. Are membrane disc filters autoclavable?

It depends on the material. PES membrane disc filters are autoclavable and gamma-stable, making them suitable for repeated sterilization cycles. PTFE and glass fiber membranes are generally heat-stable. Always check the product specifications for autoclaving compatibility before use in sterile workflows.

Q5. How do membrane disc filters reduce lab downtime?

They reduce downtime by providing consistent, predictable filtration performance with minimal clogging when properly matched to the application. Using a glass fiber pre-filter upstream of a fine membrane disc filter extends filter life significantly, reducing the number of filter changes and interruptions during a filtration run.
