How GL45 Glass Caps and Adapters Improve Laboratory Fluid Handling
June 2, 2026

How GL45 Glass Caps and Adapters Improve Laboratory Fluid Handling

If you work in a research lab, bioprocess facility, or pharmaceutical production environment, you know how important it is to have reliable, leak-proof connections on your glass bottles and media containers. One of the most practical and widely used solutions in modern labs is the GL45 glass cap and adapter system. Whether you are handling cell culture media, buffer solutions, reagents, or solvents, the right GL45 bottle cap can make a noticeable difference in workflow efficiency, contamination control, and overall safety. This guide explains what GL45 caps are, how they work, and why labs around the world rely on them for critical fluid handling applications.

What Exactly Are GL45 Caps and Adapters, and Why Do Laboratories Use Them?

GL45 refers to a standardized 45mm glass bottle neck thread, widely used on laboratory media and reagent bottles. GL45 caps create a secure seal and support adapters for tubing, filters, and venting converting standard bottles into closed fluid systems instantly. This modular design is essential in aseptic processing for cell culture, fermentation, drug formulation, and analytical chemistry, reducing contamination risk and simplifying workflows.

What Is the Difference Between a GL45 Closed Cap and an Open Cap with Adapter?

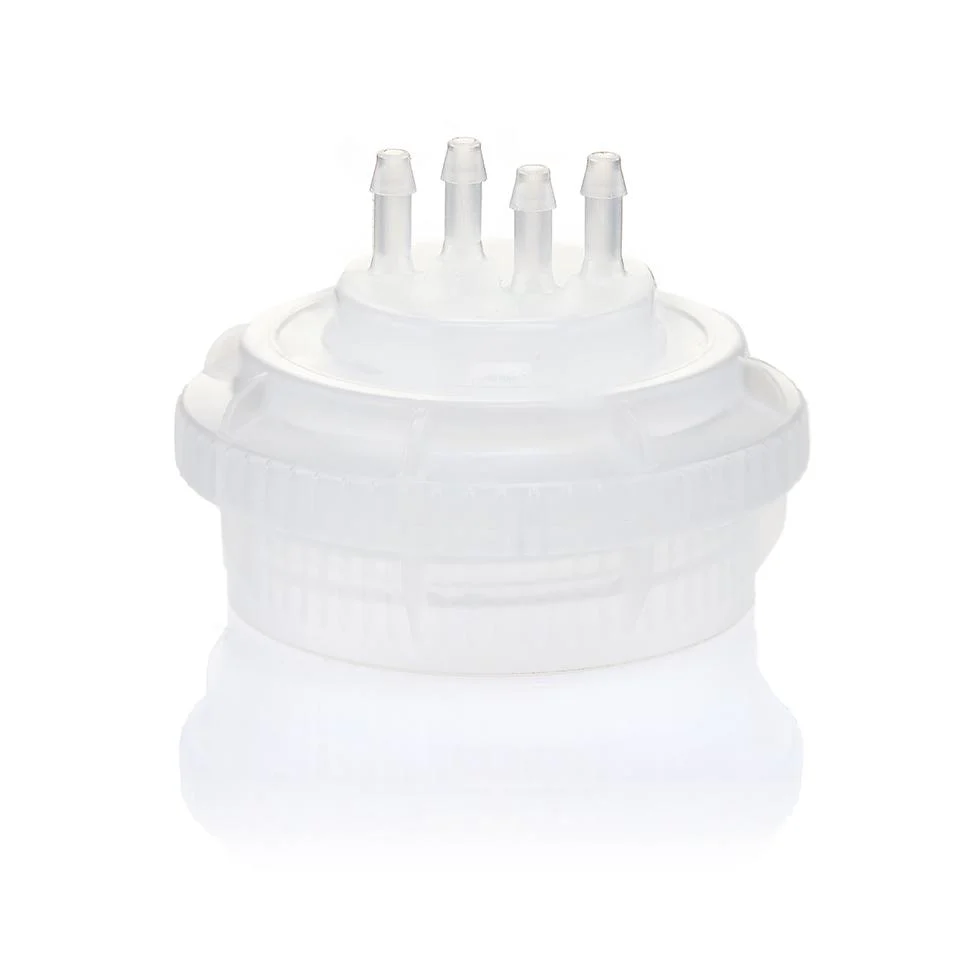

An open GL45 cap with adapter, on the other hand, has an open center ring paired with a separate insert or adapter that goes through the cap opening. This adapter can be a hose barb adapter (for connecting flexible tubing), a closed adapter (to plug unused ports), or a multi-port adapter with two, three, or four hose barb connections. This is what gives GL45 systems their flexibility. Depending on your workflow, you can configure the cap to allow liquid in, liquid out, venting, or sampling, all through a single, secure bottle opening. Common configurations include 2x 1/8" hose barb, 3x 1/8" hose barb, and 4x 1/8" hose barb molded adapters, as well as 2x 1/4" hose barb variants for higher flow rate applications.

How Do GL45 Caps Help Prevent Contamination in Laboratory Fluid Handling?

GL45 caps create airtight seals on glass bottles, preventing contamination and protecting sterility from bottle to application point. Paired with vent filters or membrane inserts, they enable closed-system fluid transfer via tubing eliminating repeated bottle opening. Ideal for bioprocess and pharmaceutical applications, their USP Class VI polypropylene construction ensures chemical resistance, autoclavability, and zero risk of sample interference.

Which Laboratories and Industries Benefit the Most from GL45 Glass Cap Systems?

The short answer is: almost any lab that uses glass media bottles. The GL45 thread standard is globally recognized and used across a remarkable range of industries and research disciplines. Below are the primary application areas where GL45 caps and adapters deliver clear operational advantages:

  • Biotechnology and Cell Culture: Labs growing mammalian cells, microbial cultures, or conducting upstream bioprocessing use GL45 bottle assemblies for media preparation, reagent storage, and closed fluid transfer.

  • Pharmaceutical Manufacturing: GMP-compliant facilities use GL45 systems for buffer preparation, in-process hold, and formulation steps where contamination control and documentation are essential.

  • Analytical and Research Labs: Scientists preparing HPLC mobile phases, eluents, or standard solutions use GL45 caps to seal bottles and connect directly to analytical instruments via tubing.

  • Vaccine and Biologics Development: High-containment labs working with viral vectors or biological agents rely on closed GL45 assemblies to maintain safety and sterility..

What Materials Are GL45 Caps and Adapters Made From, and Does It Matter?

Yes, material selection matters significantly. The most common material for GL45 laboratory bottle caps is natural or white polypropylene (PP). Polypropylene is chemically inert, resistant to a wide range of laboratory solvents and reagents, and can withstand standard autoclave sterilization cycles (typically 121°C). For applications involving more aggressive chemicals or higher temperatures, PTFE-lined GL45 caps or caps with silicone gaskets are available and offer superior chemical resistance.

How Do You Choose the Right GL45 Cap or Adapter Configuration for Your Application?

Selecting the correct GL45 glass cap and adapter configuration comes down to understanding your specific fluid handling needs. Here are the key factors to consider before making a selection:

  • Number of ports required: If you need to connect a single inlet tube, a 1-port adapter suffices. For inlet, outlet, and vent simultaneously, a 3-port or 4-port configuration is more appropriate.

  • Tubing inner diameter: Match the hose barb size (1/8" or 1/4") to your tubing ID for a secure, leak-free connection.

  • Sterility requirements: For aseptic applications, look for pre-assembled and gamma-sterilized GL45 cap assemblies that come ready to use without additional processing.

  • Bottle volume and compatibility: Confirm that the GL45 cap is designed for glass (not just HDPE plastic) bottles, as thread tolerances can differ between material types.

  • Cap color coding: White and natural PP caps can be used interchangeably functionally, but color coding can help with organization and identification in multi-bottle setups.

Why Foxx Life Sciences for GL45 Glass Caps and Adapters?

Foxx Life Sciences is an ISO 13485-certified provider of laboratory and bioprocess consumables with deep expertise in fluid handling solutions. Their GL45 Glass Caps and Adapters featuring the EZBio® VersaCap® platform are engineered for leak-proof performance, USP Class VI compliance, and multi-port tubing flexibility across glass bottles. Manufactured in cleanroom environments and backed by rigorous quality documentation, Foxx's GL45 range is trusted by pharmaceutical, biotech, and research labs across India and the APAC region. Explore the full range at https://www.foxxlifesciences.in/collections/glass-gl45-caps.

Frequently Asked Questions

Q: What does GL45 mean on a laboratory glass bottle cap?

A: GL45 denotes a 45mm German-standard thread, ensuring universal compatibility across laboratory glass media bottles and accessories.

Q: Can GL45 caps and adapters be autoclaved for repeated use?

A: Yes, polypropylene GL45 caps withstand 121°C autoclaving. For GMP applications, single-use gamma-irradiated assemblies are strongly recommended.

Q: What size tubing fits a GL45 hose barb adapter?

A: GL45 hose barb adapters fit 1/8-inch or 1/4-inch inner diameter tubing for secure, leak-free connections.

Q: Are GL45 caps compatible with all brands of glass media bottles?

A: Yes, GL45 is internationally standardized. Caps fit any compliant glass media bottle, regardless of manufacturer, though verification is recommended.
